DecayConvolution Class Reference

#include <DecayConvolution.h>

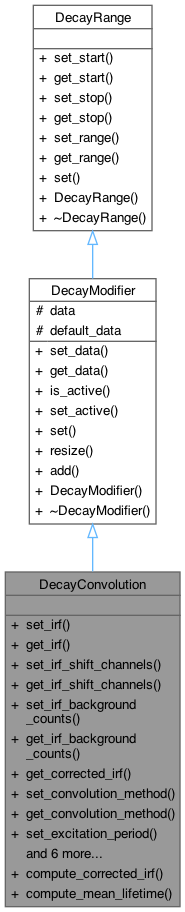

Inheritance diagram for DecayConvolution:

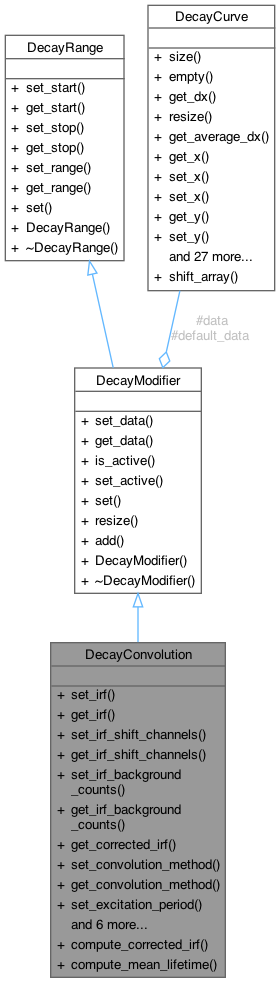

Collaboration diagram for DecayConvolution:

Public Types
enum	ConvolutionType {   FAST_PERIODIC_TIME , FAST_TIME , FAST_PERIODIC , FAST ,   FAST_AVX , FAST_PERIODIC_AVX }

Public Member Functions
void	set_irf (DecayCurve *v)
DecayCurve *	get_irf ()
void	set_irf_shift_channels (double v)
double	get_irf_shift_channels () const
void	set_irf_background_counts (double v)
double	get_irf_background_counts () const
DecayCurve &	get_corrected_irf ()
void	set_convolution_method (int v)
	The method used for convolution.
int	get_convolution_method () const
void	set_excitation_period (double v)
double	get_excitation_period () const
double	get_mean_lifetime (DecayCurve *decay)
void	set (int convolution_method=FAST_PERIODIC_TIME, double excitation_period=100, double irf_shift_channels=0.0, double irf_background_counts=0)
	DecayConvolution (DecayLifetimeHandler *lifetime_handler=nullptr, DecayCurve *instrument_response_function=nullptr, int convolution_method=FAST, double excitation_period=100, double irf_shift_channels=0.0, double irf_background_counts=0, int start=0, int stop=-1, bool active=true)
	~DecayConvolution () override
void	add (DecayCurve *out) override
Public Member Functions inherited from DecayModifier
virtual DecayCurve *	get_data ()
bool	is_active () const
void	set_active (bool v)
void	set (DecayCurve *data, int start=0, int stop=-1, bool active=true)
void	resize (size_t n, double v=0.0)
	DecayModifier (DecayCurve *data=nullptr, int start=0, int stop=-1, bool active=true)
	~DecayModifier ()
Public Member Functions inherited from DecayRange
void	set_start (int v)
	Set the start index of the decay range.
size_t	get_start (DecayCurve *d=nullptr) const
	Get the start index of the decay range.
void	set_stop (int v)
	Set the stop index of the decay range.
size_t	get_stop (DecayCurve *d=nullptr) const
	Get the stop index of the decay range.
void	set_range (std::vector< int > v)
	Set the range using a vector of indices.
std::vector< int >	get_range (DecayCurve *d=nullptr)
	Get the range as a vector of indices.
void	set (int start=0, int stop=-1)
	Set the start and stop indices of the decay range.
	DecayRange (int start, int stop)
	Constructor.
virtual	~DecayRange ()=default
	Destructor.

Static Public Member Functions
static void	compute_corrected_irf (DecayCurve *irf, DecayCurve *corrected_irf, double irf_shift_channels, double irf_background_counts)
static double	compute_mean_lifetime (std::vector< double > irf_histogram, std::vector< double > decay_histogram, double micro_time_resolution)

Additional Inherited Members
Protected Attributes inherited from DecayModifier
DecayCurve *	data = nullptr
DecayCurve *	default_data = nullptr

Member Enumeration Documentation

ConvolutionType

enum DecayConvolution::ConvolutionType

Enumerator
FAST_PERIODIC_TIME
FAST_TIME
FAST_PERIODIC
FAST
FAST_AVX
FAST_PERIODIC_AVX

Constructor & Destructor Documentation

DecayConvolution()

DecayConvolution::DecayConvolution ( DecayLifetimeHandler *  lifetime_handler = nullptr, DecayCurve *  instrument_response_function = nullptr, int  convolution_method = FAST, double  excitation_period = 100, double  irf_shift_channels = 0.0, double  irf_background_counts = 0, int  start = 0, int  stop = -1, bool  active = true  )

inline

~DecayConvolution()

DecayConvolution::~DecayConvolution ( )

inlineoverride

Member Function Documentation

add()

void DecayConvolution::add ( DecayCurve *  out )

inlineoverridevirtual

Modify the DecayCurve object.

Parameters

out	The DecayCurve object to be modified.

Implements DecayModifier.

compute_corrected_irf()

static void DecayConvolution::compute_corrected_irf ( DecayCurve *  irf, DecayCurve *  corrected_irf, double  irf_shift_channels, double  irf_background_counts  )

inlinestatic

compute_mean_lifetime()

static double DecayConvolution::compute_mean_lifetime ( std::vector< double >  irf_histogram, std::vector< double >  decay_histogram, double  micro_time_resolution  )

inlinestatic

Compute a mean lifetime by the moments of the decay and the instrument response function.

The computed lifetime is the first lifetime determined by the method of moments (Irvin Isenberg, 1973, Biophysical journal).

Parameters

irf_histogram
decay_histogram
micro_time_resolution

Returns

get_convolution_method()

int DecayConvolution::get_convolution_method ( ) const

inline

get_corrected_irf()

DecayCurve & DecayConvolution::get_corrected_irf ( )

inline

get_excitation_period()

double DecayConvolution::get_excitation_period ( ) const

inline

get_irf()

DecayCurve * DecayConvolution::get_irf ( )

inline

get_irf_background_counts()

double DecayConvolution::get_irf_background_counts ( ) const

inline

get_irf_shift_channels()

double DecayConvolution::get_irf_shift_channels ( ) const

inline

get_mean_lifetime()

double DecayConvolution::get_mean_lifetime ( DecayCurve *  decay )

inline

set()

void DecayConvolution::set ( int  convolution_method = FAST_PERIODIC_TIME, double  excitation_period = 100, double  irf_shift_channels = 0.0, double  irf_background_counts = 0  )

inline

set_convolution_method()

void DecayConvolution::set_convolution_method ( int  v )

inline

The method used for convolution.

0 - fconv_per_cs_time_axis 1 - fconv_cs_time_axis 2 - fconv_per 3 - fconv 4 - fconv with AVX optimization 5 - fconv_per with AVX optimization

set_excitation_period()

void DecayConvolution::set_excitation_period ( double  v )

inline

set_irf()

void DecayConvolution::set_irf ( DecayCurve *  v )

inline

set_irf_background_counts()

void DecayConvolution::set_irf_background_counts ( double  v )

inline

set_irf_shift_channels()

void DecayConvolution::set_irf_shift_channels ( double  v )

inline

---

The documentation for this class was generated from the following file:

• /Users/tpeulen/dev/imp.bff/include/DecayConvolution.h
