DecayScale Class Reference

A class for scaling a DecayCurve by a constant factor and subtracting a constant background value. More...

#include <DecayScale.h>

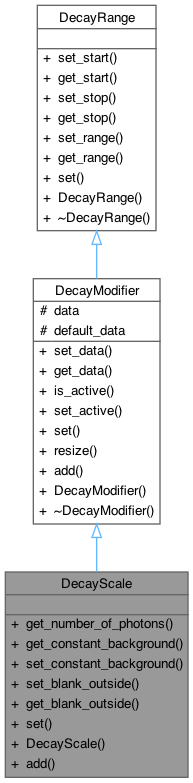

Inheritance diagram for DecayScale:

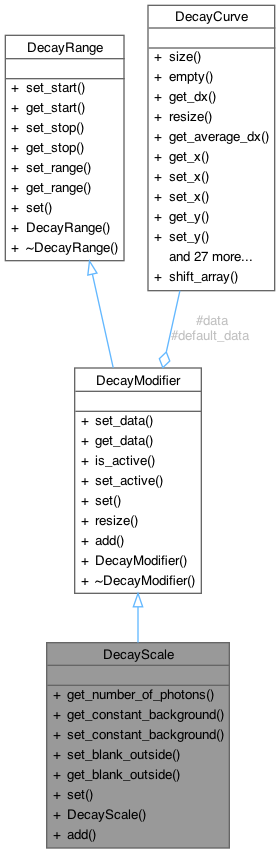

Collaboration diagram for DecayScale:

Public Member Functions
double	get_number_of_photons ()
double	get_constant_background () const
void	set_constant_background (double v)
void	set_blank_outside (double v)
bool	get_blank_outside ()
void	set (DecayCurve *data=nullptr, double constant_background=0.0, int start=0, int stop=-1, bool active=true, bool blank_outside=true)
	DecayScale (DecayCurve *data=nullptr, double constant_background=0.0, int start=0, int stop=-1, bool active=true, bool blank_outside=true)
void	add (DecayCurve *decay)
Public Member Functions inherited from DecayModifier
virtual void	set_data (DecayCurve *v)
virtual DecayCurve *	get_data ()
bool	is_active () const
void	set_active (bool v)
void	set (DecayCurve *data, int start=0, int stop=-1, bool active=true)
void	resize (size_t n, double v=0.0)
	DecayModifier (DecayCurve *data=nullptr, int start=0, int stop=-1, bool active=true)
	~DecayModifier ()
Public Member Functions inherited from DecayRange
void	set_start (int v)
	Set the start index of the decay range.
size_t	get_start (DecayCurve *d=nullptr) const
	Get the start index of the decay range.
void	set_stop (int v)
	Set the stop index of the decay range.
size_t	get_stop (DecayCurve *d=nullptr) const
	Get the stop index of the decay range.
void	set_range (std::vector< int > v)
	Set the range using a vector of indices.
std::vector< int >	get_range (DecayCurve *d=nullptr)
	Get the range as a vector of indices.
void	set (int start=0, int stop=-1)
	Set the start and stop indices of the decay range.
	DecayRange (int start, int stop)
	Constructor.
virtual	~DecayRange ()=default
	Destructor.

Additional Inherited Members
Protected Attributes inherited from DecayModifier
DecayCurve *	data = nullptr
DecayCurve *	default_data = nullptr

Detailed Description

A class for scaling a DecayCurve by a constant factor and subtracting a constant background value.

The DecayScale class is a subclass of DecayModifier and is used to scale a DecayCurve by a constant factor and subtract a constant background value. It provides methods to set and get the constant background value, as well as to set whether the curve should be blanked outside a specified range. The scaling and background subtraction are applied to the DecayCurve when the modify() method is called.

Constructor & Destructor Documentation

DecayScale()

DecayScale::DecayScale	(	DecayCurve *	data = nullptr,
		double	constant_background = 0.0,
		int	start = 0,
		int	stop = -1,
		bool	active = true,
		bool	blank_outside = true
	)

Construct a DecayScale object with the specified parameters.

Parameters

data	The DecayCurve to be scaled.
constant_background	The constant background value to be subtracted.
start	The start index of the range to be considered.
stop	The stop index of the range to be considered.
active	Flag indicating whether the DecayScale object is active.
blank_outside	Flag indicating whether the curve should be blanked outside the specified range.

Member Function Documentation

add()

void DecayScale::add ( DecayCurve *  decay )

virtual

Add a DecayCurve to be scaled by the DecayScale object.

Parameters

decay

The DecayCurve to be added.

Implements DecayModifier.

get_blank_outside()

bool DecayScale::get_blank_outside

(

)

Get whether the curve should be blanked outside a specified range.

Returns

Flag indicating whether the curve should be blanked outside a specified range.

get_constant_background()

double DecayScale::get_constant_background

(

)

const

Get the constant background value.

Returns

The constant background value.

get_number_of_photons()

double DecayScale::get_number_of_photons

(

)

Get the number of photons in the data between the start and stop indices. If the model is scaled to the data, the number of photons is returned. Otherwise, the user-specified number of photons is returned.

Returns

The number of photons in the data.

set()

void DecayScale::set	(	DecayCurve *	data = nullptr,
		double	constant_background = 0.0,
		int	start = 0,
		int	stop = -1,
		bool	active = true,
		bool	blank_outside = true
	)

Set the parameters of the DecayScale object.

Parameters

data	The DecayCurve to be scaled.
constant_background	The constant background value to be subtracted.
start	The start index of the range to be considered.
stop	The stop index of the range to be considered.
active	Flag indicating whether the DecayScale object is active.
blank_outside	Flag indicating whether the curve should be blanked outside the specified range.

set_blank_outside()

void DecayScale::set_blank_outside

(

double

v

)

Set whether the curve should be blanked outside a specified range.

Parameters

v	Flag indicating whether the curve should be blanked outside a specified range.

set_constant_background()

void DecayScale::set_constant_background

(

double

v

)

Set the constant background value.

Parameters

v	The constant background value to be set.

---

The documentation for this class was generated from the following file:

• /Users/tpeulen/dev/imp.bff/include/DecayScale.h
